World Cat 400CC-X


World Cat 400CC-X centre console Australia

400CC-X · VectorFlo · specified in Australia

Open deck.
604 gallons.
Quad if you want it.

39′8″ centre console. 12′8″ beam bow to stern. Official Asia Pacific importer.

Factory current · official Asia Pacific desk

World Cat 400CC-X specifications.

July 2026 Tarboro sheet. The Island dual-console sister is the 400DC-X. Quad packages sit on the same PDF even though the header still prints 1,200 hp.

39′8″LOA · 12′8″ beam
1,200hpheader rating · quads on the sheet
604galfuel · up to 712
21″hull draft
Specifications · 400CC-X · July 2026 sheet
Length overall39′8″ (12.09 m)
Beam12′8″ (3.86 m) bow to stern
Hull draft21″ (0.53 m)
Bridge clearance9′0″ (2.74 m)
Dry weight with power, approx.14,500 lbs (6,577 kg)
Maximum horsepower, sheet header1,200 hp

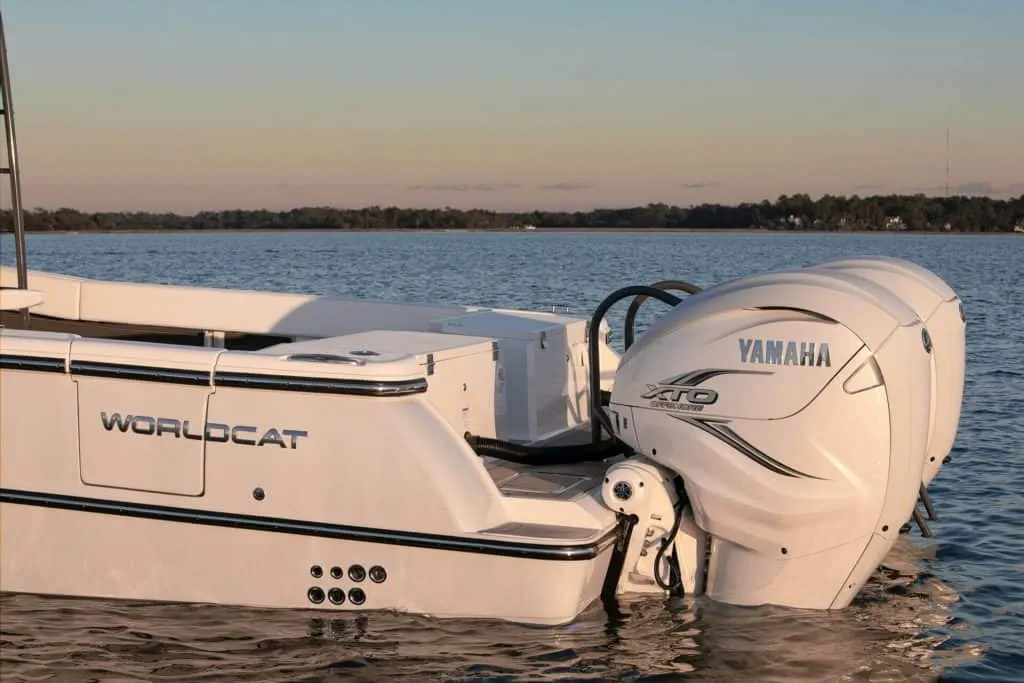

Engine packages on the same PDFTwin Yamaha 450 · quad Yamaha 350 · twin Mercury 425 V10 · twin Mercury 600 V12 · quad Mercury 425 V10
Fuel604 gal (2,287 L) · up to 712 gal extended-range option
Typical cruise / WOT*27.5 mph · 1.13 mpg / 57.4 mph (*typical options; sheet footnote lists Yamaha 300s)

worldcat.com/models currently lists the 400CC-X at 1,700 hp. Confirm power on the current Tarboro sheet before the Australian order is signed. 400CC-X spec PDF

On the hull · factory highlights

  • VectorFlo twin hull · 12′8″ beam carried bow to stern
  • Triple captain’s chairs · seating for up to 20 with optional layouts
  • 604 gallons in two under-deck aluminium tanks
  • Portside Hooker sea-chest with acrylic top
  • Transom door · fresh and salt washdown
  • Three forward hatches: storage, anchor roller, windlass

Joystick, tower and Seakeeper stay on the Australian order.

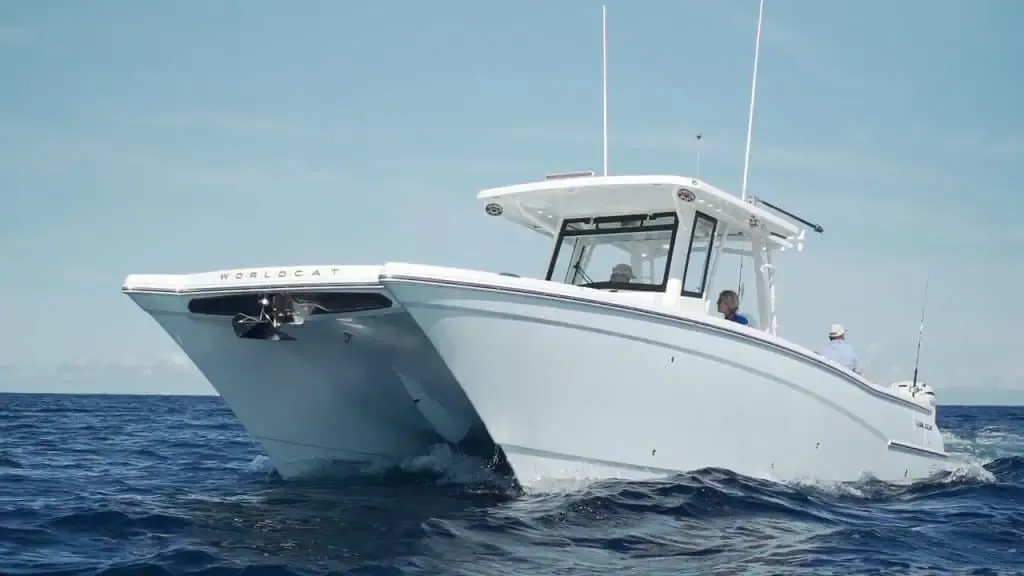

World Cat 400CC-X fishing deck

Deck

A 40-foot cockpit

Beam carried to the bow. Room for a team that still wants to stand.

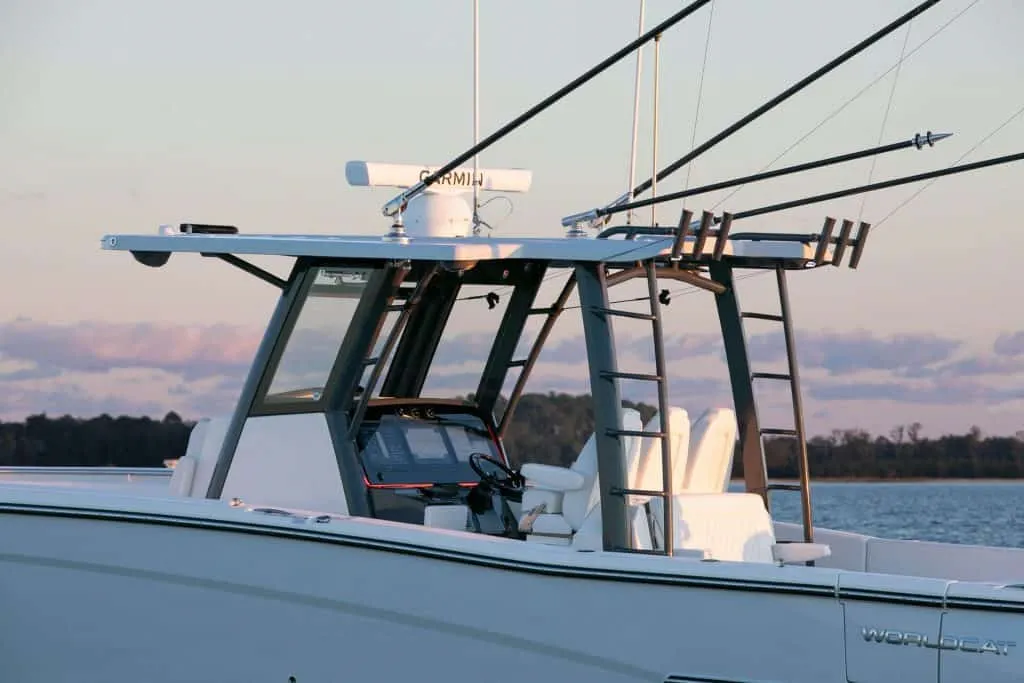

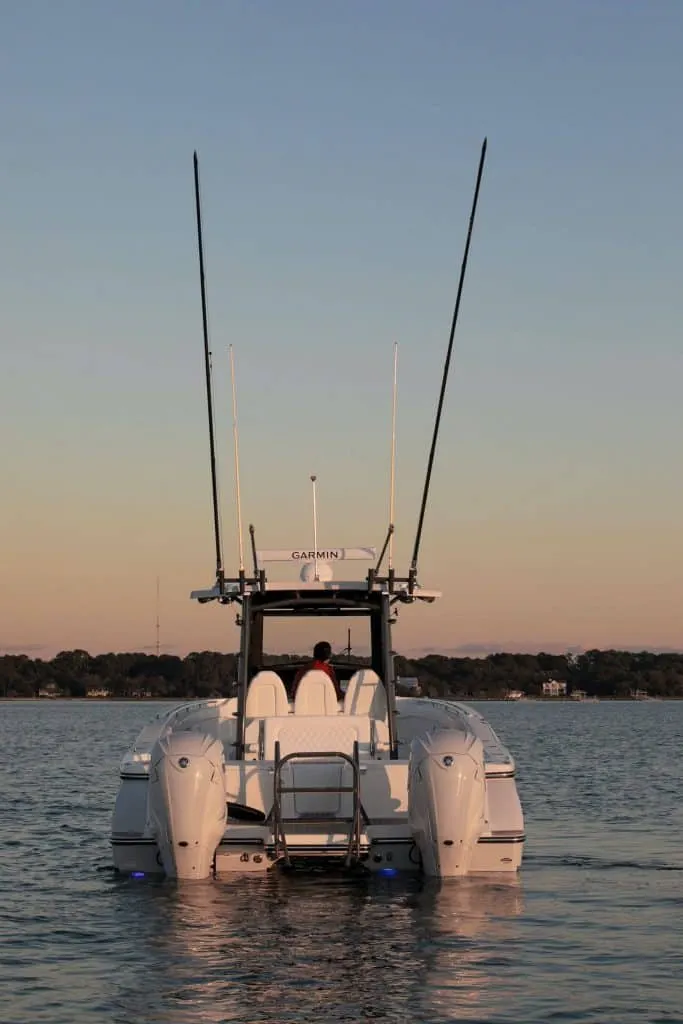

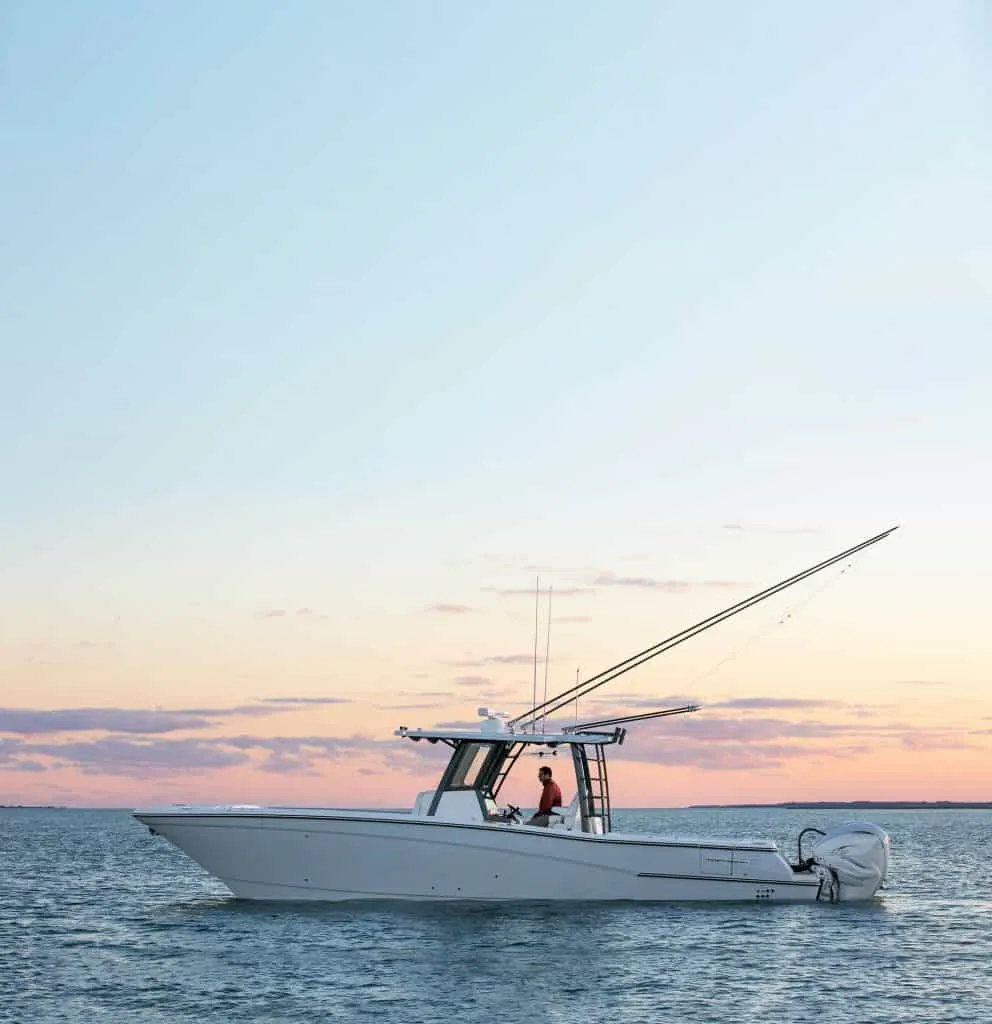

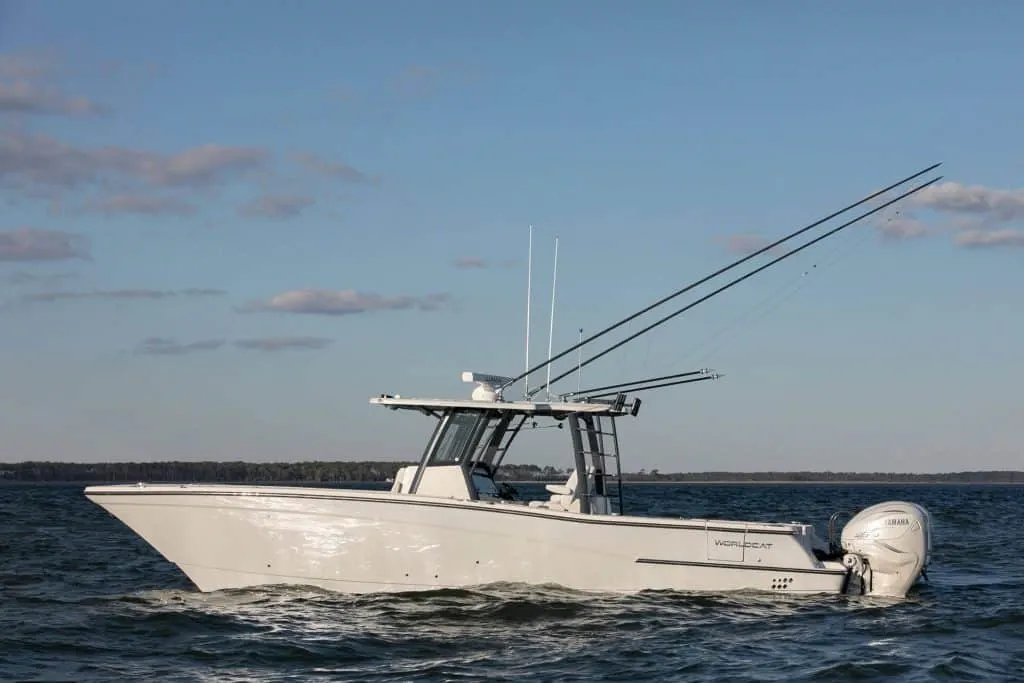

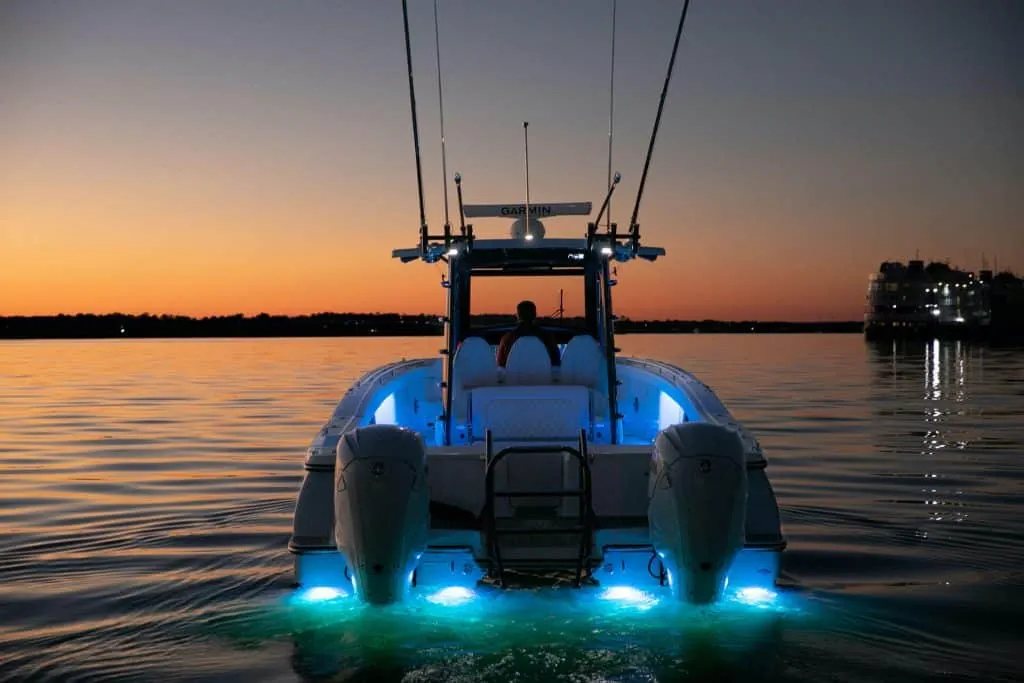

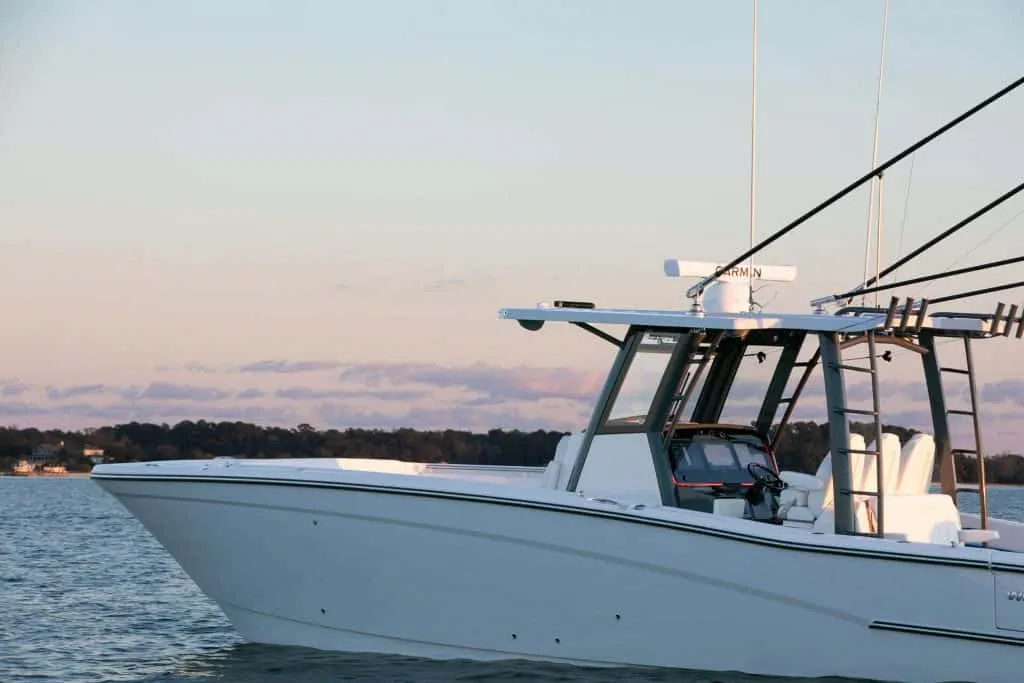

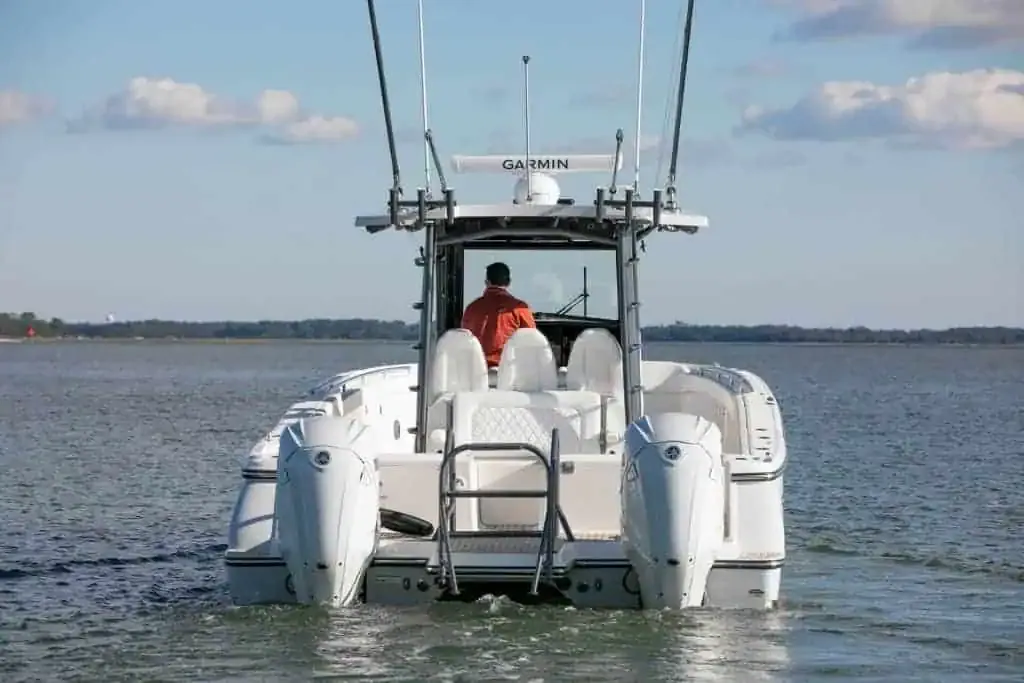

World Cat 400CC-X running

The desk

Official Asia Pacific

Specified from Australia. Delivered anywhere in the region.

World Cat Australia

Official desk for Australia, New Zealand and the Pacific. Specified here. Delivered to any major port.
